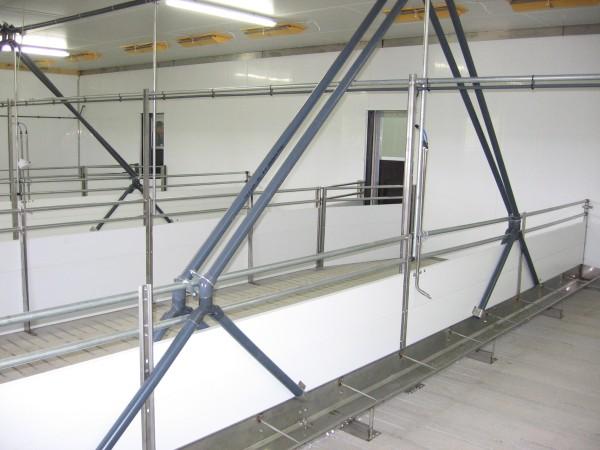

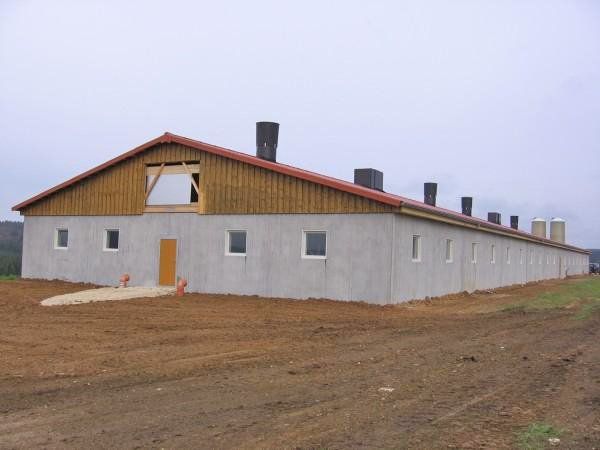

Gilt rearing house in 73566 Bartholomä Commissioning: autumn 2006

Brief description of the stable:

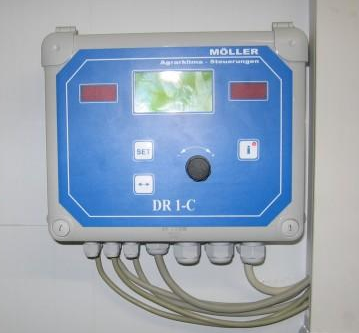

New stable building with 10 compartments. Under-crevice suction via double wall in the central aisle. Exhaust air collecting duct in the attic with two heat exchangers for supply air heating. Supply air to the compartments via ceiling supply air valve, thus draft-free central aisle. Electronic control of the entire ventilation system via digital controller DR1-C, which is in the network "LON "are operated. Alarm system with optical and acoustic signal, alarm forwarding through telephone dialer.

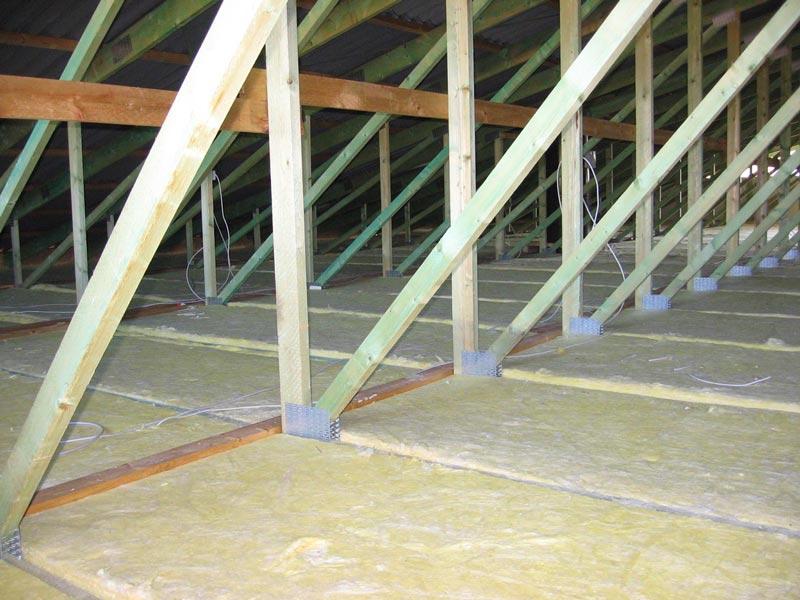

Fattening house with 900 fattening places in 45216 Ennigerloh. Commissioning: autumn 2006

Brief description of the stable:

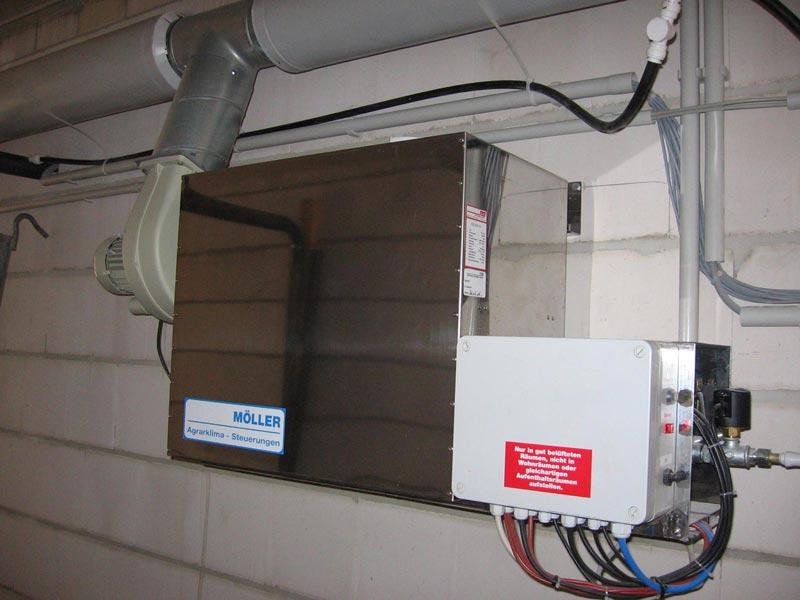

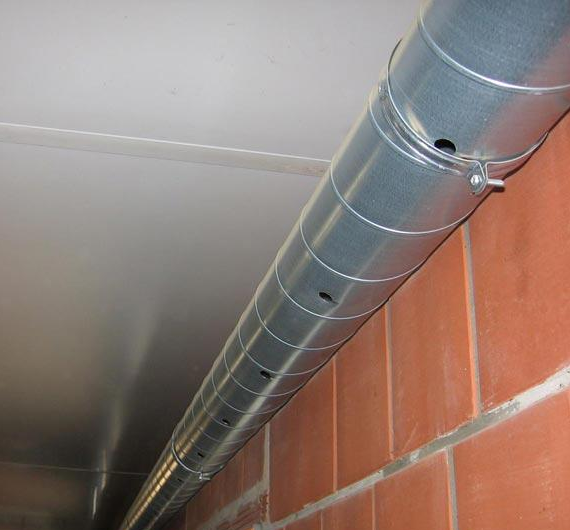

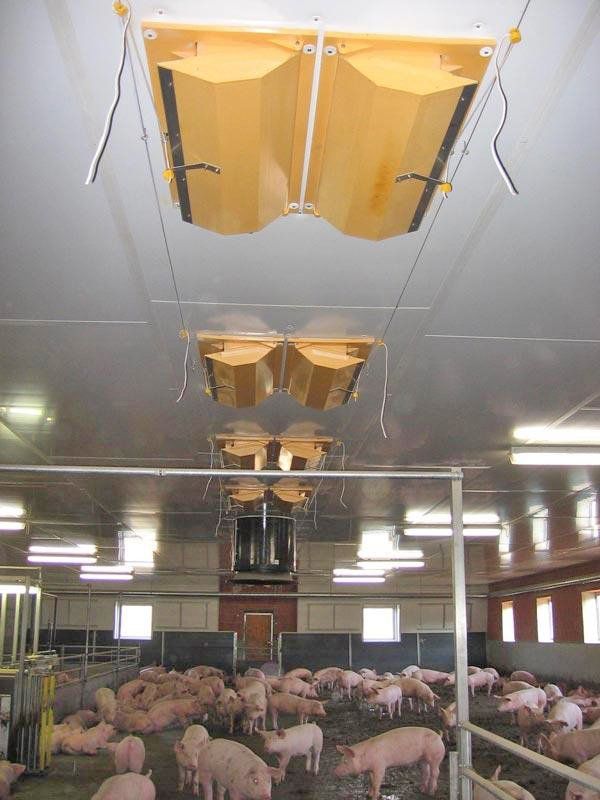

New building with 2 large compartments with 450 fattening pigs each from 25 - 110 kg. Central suction via exhaust air collection duct in the attic with energy-saving ETAvent technology with group switching. Classic under-gap suction in the compartments with the option of above-floor suction. Supply air to the compartments via eaves slit and closed insulation Supply air ceiling elements that are operated via spindle drives in the central aisle. Heating via 48.0 kW liquefied gas convector via folded spiral ducts in the compartments. Control of the entire ventilation system via digital controller DR1-B, which is operated in the "LON-BUS" network and also via the Möller PC - Climate control program can be controlled. Alarm system with optical and acoustic signal, alarm forwarding through telephone dialer.

Barn for 1000 EM pigs and 500 piglets in 59439 Holzwickede. Commissioning: December 2006

Brief description of the stable:

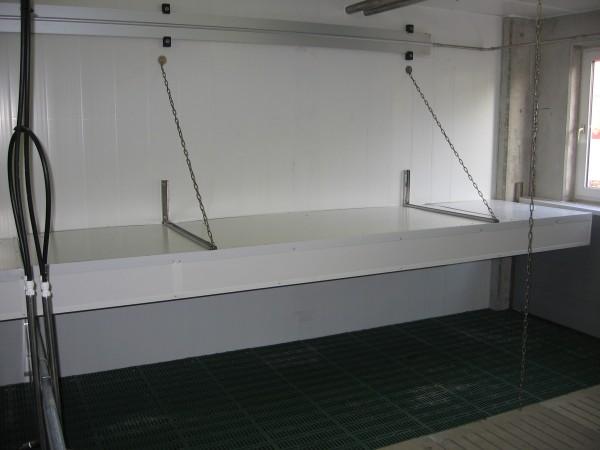

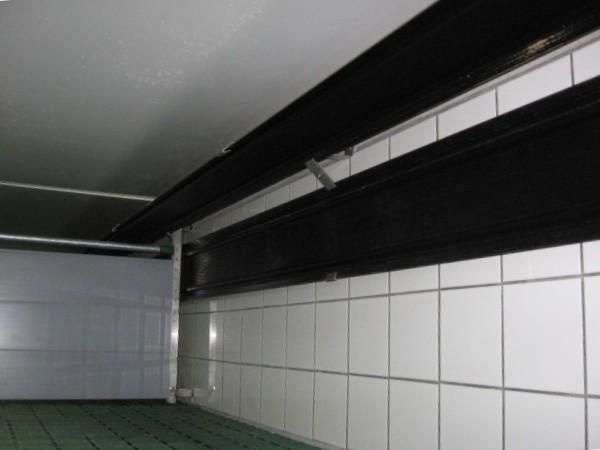

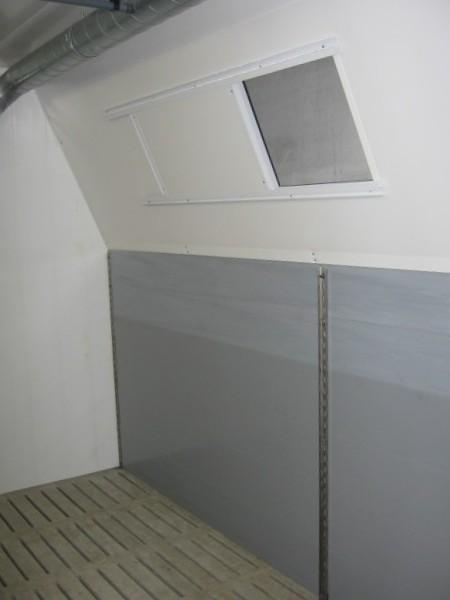

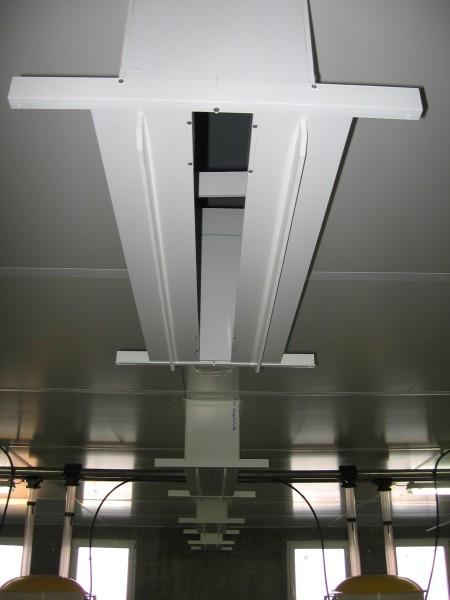

New construction of a double-comb barn with 12 compartments. Central suction via exhaust air collection duct in the attic with energy-saving ETAvent technology In the compartments, classic under-crevice suction on the central aisle with the possibility of upper floor suction. Supply air to the compartments via slot ventilation using ceiling supply air elements DZE1 (DR1 digital system controller) Electronic control of the entire ventilation system -B, which are operated in the "LON-BUS" network. Heating via 48 kW liquefied gas convector via folded spiral ducts in the final fattening compartments. Heating of the piglet area via piglet nest heating, twin pipe and 15 kW liquefied gas convector the individual compartments, alarm system with optical and acoustic signals.
